Elite | Water, Oil & Solvent Battery Powered Sprayer

$853.00

Designed with convenience, speed and durability SMK’s Elite Series  provides a revolutionary way to apply ANY* Water, Oil or Solvent based Chemical product you need for your project.

This sprayer is ideal for low volume water based, oil based and solvent applications. It reduces product application time by 200% or more over old-fashioned hand pump sprayers.

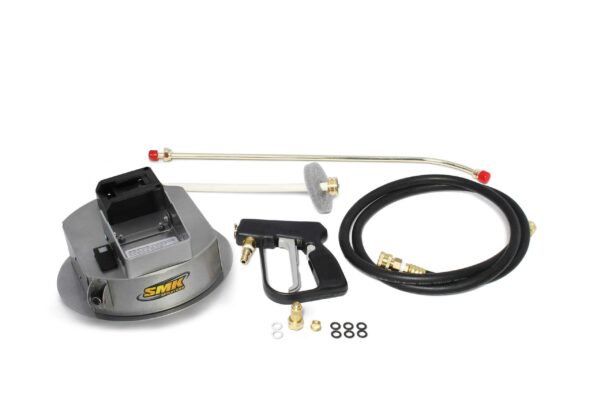

The Elite Water, Oil and Solvent Battery Powered Sprayer comes with the following items standard:

  • Elite  Battery Powered Pump with Fully Enclosed Chassis
  • 5 Gallon Intake Tube
  • 6 Foot EPDM Hose
  • 24″ Wand with Pistol Grip Spray Handle (Curved, TeeJet, Brass with Adjustable Cone and .5 GPM Fan Tips)

Temporarily Out Of Stock

Clear

Description

Designed with convenience, speed and durability SMK’s Elite Sprayer provides a revolutionary way to apply any product you need for your project including Water, Oil and Solvent based products (excluding Acids). This model is specifically manufactured with internal and external components for Chemical Resistant spraying.

Features:

  • Teflon Coated Diaphragm pump with the ability to self-prime and run dry
  • Quick disconnect fittings
  • Sprays up to 30 gallons on one charge depending on viscosity, with 2AH Battery.  (Note: Larger AH Batteries will increase Gallons per Charge accordingly)
  • 0.7 GPM (open flow) capacity
  • Automatic Pressure Shutoff, 60 PSI
  • Cleans with Xylene or suggested product from the liquid manufacturer
  • Product Weight 14 lbs
  • Shipping Dimensions 25 × 13 × 9 in

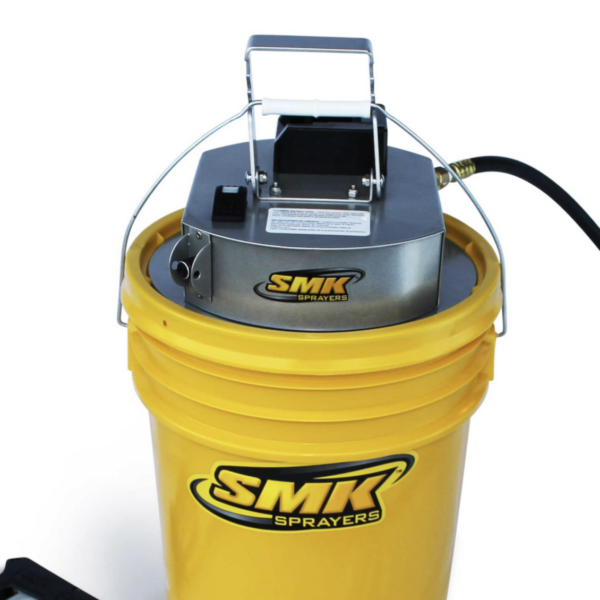

  • Nests in lids of most Buckets up to 7 Gallon, sits on Drums
  • All fittings contacting fluid being sprayed is Brass
  • Carrying/Bucket Locking Handle
  • Self Priming (in vertical ft.) Up to 8.0 Ft
  • Variable Speed, separate from Power Switch
  • Tip Kit Includes Adjustable Cone Tip, 0.5 GPM Fan Tip, 2 Nylon Seals, 6 O-Rings
  • Fully Enclosed Chassis
  • Wand  – 24 Inch TeeJet Curved Brass
  • Spray Handle – GunJet style with corrosion resistant packing



Chemical Compatibility

The Elite Water Oil and Solvent sprayer will spray all chemicals that are 25% solids or less. If you have questions on whether this sprayer can spray your specific chemical, please contact us



*Please note this sprayer will not work with Hydrochloric/Muriatic Acid.



Owner’s Manual

Elite Series (Model #P100AC3) Owner’s Manual PDF

Speed Control Instructions for Elite Sprayer

Accessories

Caution: If fluid is improperly matched to the pump’s elastomers, a leak or damage to the pump may occur. Be certain that material being sprayed is compatible with Geolast valves, Buna-N diaphragms, and polypropylene pump body. The above list contains some of the more commonly use chemicals.

Recommended Industries:

construction worker spraying a new concrete surface
HVAC and coil cleaning sprayers

Additional information

Weight 14 lbs
Dimensions 25 × 13 × 9 in
Automatic Demand

60 PSI Off, 55 PSI on

Battery Brand Adaption

DeWalt 20v Slide-on, Milwaukee 18v Slide-on, Makita 18v Slide-on

Bucket Size

5 Gallon, 55 Gallon

Cleaning Agent

Xylene or recommendation by the Manufacturer of product being Sprayed

Gallon per Minute Capacity

0.7 GPM

Hose Fitting Material

Brass

Carrying/ Locking Handle

Yes

Locking/ Non-Locking on to the Bucket

Locking

Self Priming (in vertical ft.)

Up to 8.0 Ft

Variable Speed or One Speed

Variable Speed

Tip Kit Includes

Adjustable Cone Tip, 0.5 GPM Fan Tip, 2 Nylon Seals, 6 O-Rings

Type of Chassis

Fully Enclosed

Wand Brand/Length/Type Material

TeeJet 24 Inch Curved Brass
