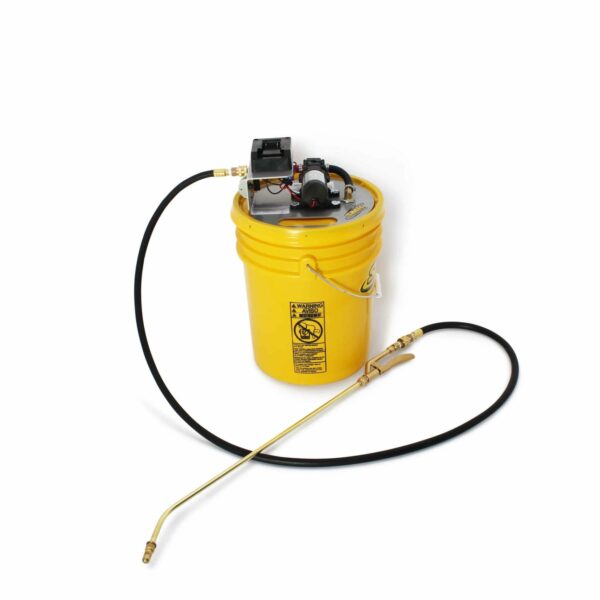

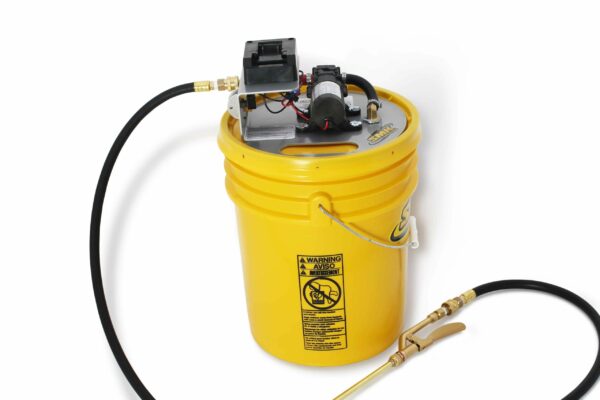

Rival | Water & Oil Battery Powered Sprayer

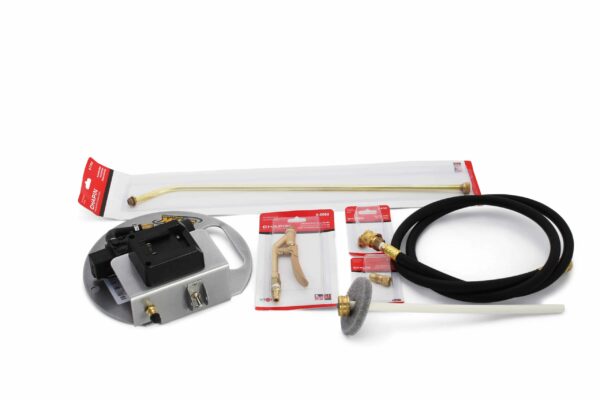

The Rival Water & Oil Battery Powered Sprayer comes with the following items standard:

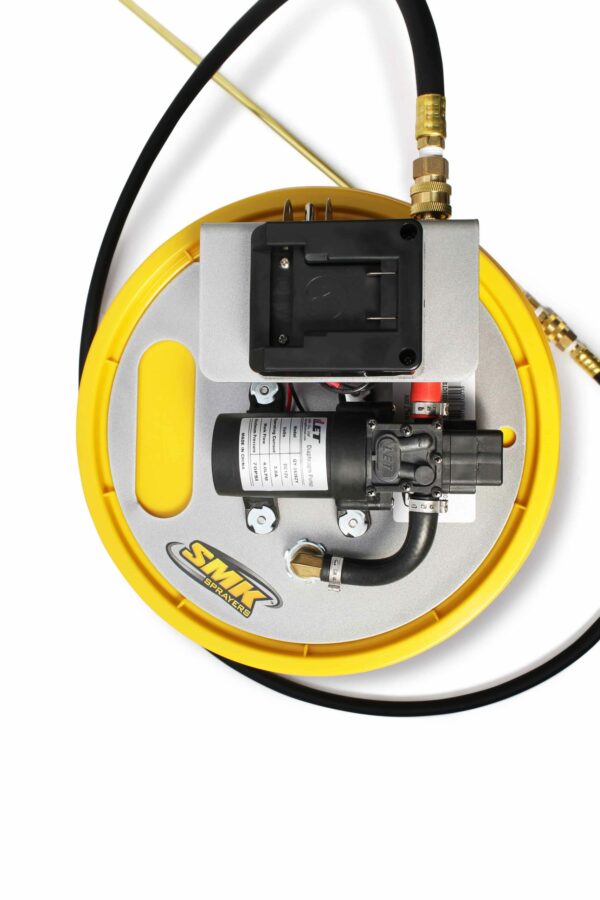

  • Rival Battery Powered Pump with Open Chassis

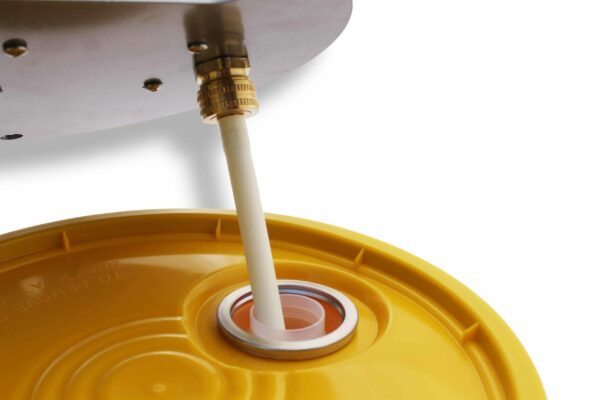

  • 5 Gallon Intake Tube
  • 6 Foot EPDM Hose
  • 24″ Wand  (Chapin Curved Brass Wand with Adjustable Cone and .5 GPM Fan Tips)



  • Diaphragm pump with the ability to self-prime and run dry
  • Quick disconnect fittings
  • Sprays up to 30 gallons on one charge depending on viscosity, with 2AH Battery.  (Note: Larger AH Batteries will increase Gallons per Charge accordingly)
  • 1 GPM (open flow) capacity
  • Automatic Pressure Shutoff, 70 PSI
  • Cleans with soapy water, diesel fuel or suggested product from the liquid manufacturer
  • Product Weight 9 lbs
  • Shipping Dimensions 25 × 13 × 7 in

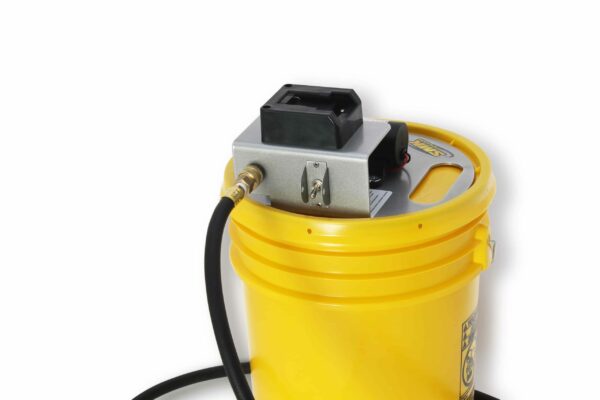

  • Nests in lids of most Buckets up to 7 Gallon
  • All fittings contacting fluid being sprayed is Brass
  • Hand Slot for Carrying
  • Self Priming (in vertical ft.) Up to 3.0 Ft
  • One Speed (no speed or volume control)
  • 2 Tips Included – Adjustable Cone Tip, 0.5 GPM Fan Tip
  • Open Chassis
  • Wand  – 24 Inch Curved Brass, Chapin Brand
  • Shut Off Spray Handle – Chapin Brand, Brass


Chemical compatibility


Owner’s Manual


Caution: If fluid is improperly matched to the pump’s elastomers, a leak or damage to the pump may occur. Be certain that material being sprayed is compatible with Geolast valves, Buna-N diaphragms, and polypropylene pump body. The above list contains some of the more commonly use chemicals.

Recommended Industries:

construction worker spraying a new concrete surface
HVAC and coil cleaning sprayers
pest control

Additional information

Weight 9 lbs
Dimensions 25 × 13 × 7 in
Automatic Demand

55 PSI on, 70 PSI off

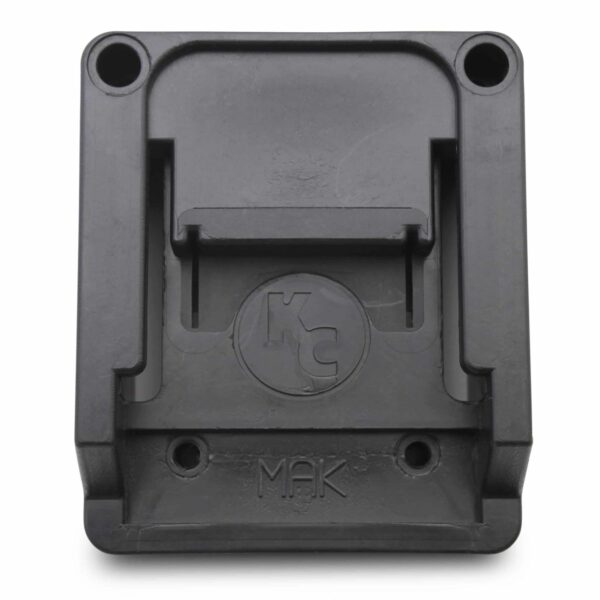

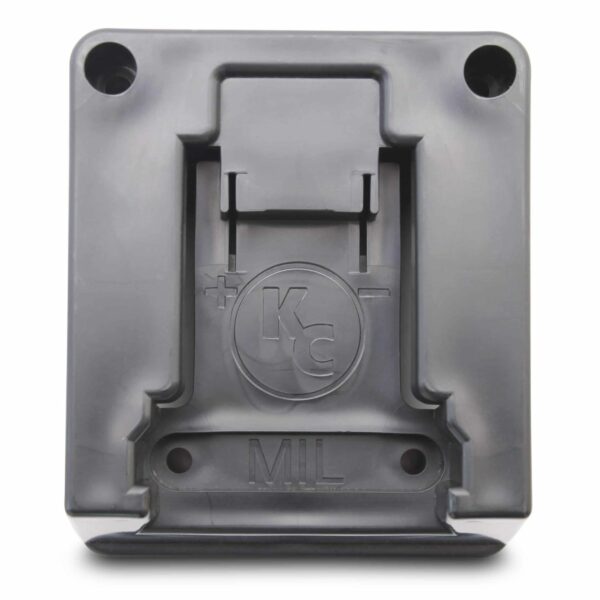

Battery Brand Adaption

DeWalt 20v Slide-on, Milwaukee 18v Slide-on, Makita 18v Slide-on

Bucket Size

3.5 Gallon, 5 Gallon, 55 Gallon

Cleaning Agent

Diesel fuel, Soapy Water

Gallon per Minute Capacity


Hose Fitting Material


Carrying/ Locking Handle


Locking/ Non-Locking on to the Bucket


Self Priming (in vertical ft.)

Up to 3.0 Ft

Variable Speed or One Speed

One Speed

Tip Kit Includes

Adjustable Cone Tip, 0.5 GPM Fan Tip

Type of Chassis


Wand Brand/Length/Type Material

Chapin 24 Inch Curved Brass
